On prem agent

Getting started

Getting started (on-prem agent)

How the agent works

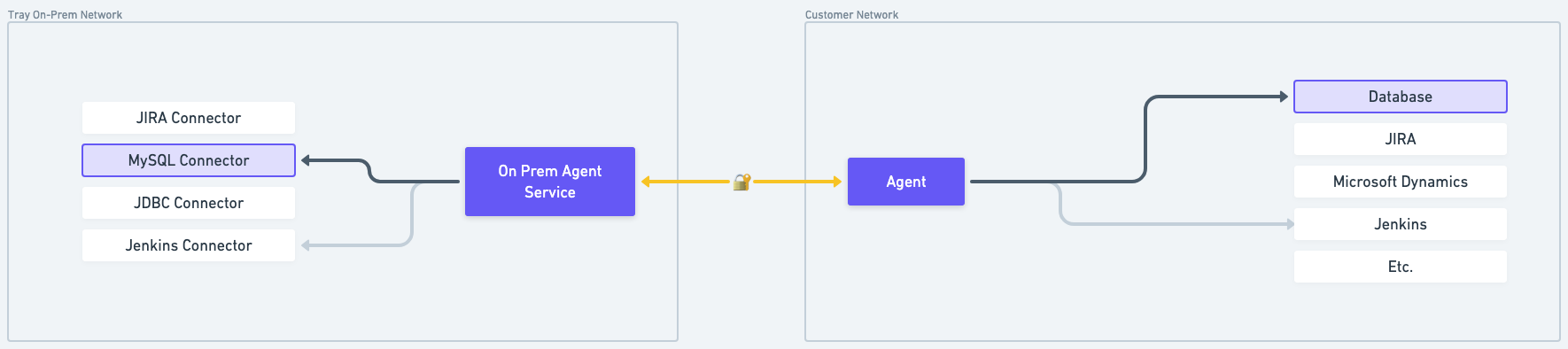

on-prem-architecture Once installed on your private infrastructure, Tray's on-prem agent creates a secure connection with Tray which allows Tray's connectors to communicate directly with your key services and databases. With a single agent, you have the ability to configure your connectors to interact with your resources through a secure connection and the agent will seamlessly redirect requests automatically.

A key benefit of the on-prem agent is that the connector nodes inside the Tray On-Prem Network are dedicated resources and not shared with other users.


When using the on-prem agent you do not need to open up your services to the internet - Tray authentications for your on-prem services can make use of your internal private IP address and port / proxy configurations, and you can shut down access to your public IP. For load-balancing and high availability, agents can be installed in groups.

OS Support

The on-prem agent runs on Linux and Windows (64-bit Intel / AMD and ARM) The agent can be run on your own hardware or on any public cloud platform - AWS, Azure, GCP etc. and will run on any virtual or physical machine running any of the above OSes.
