Building schema from JSON

The Build from JSON tool lets you quickly create object or array schemas by pasting JSON data, instead of manually defining properties. This feature works in two contexts:

1. Step properties
2. Schema editing for API Management (APIM) and Callable workflows

Building step properties

When editing step properties, you can use Build from JSON for objects and arrays without restricted type interfaces (e.g. that accept only certain values).

1. Locate the "From JSON" button next to a property.

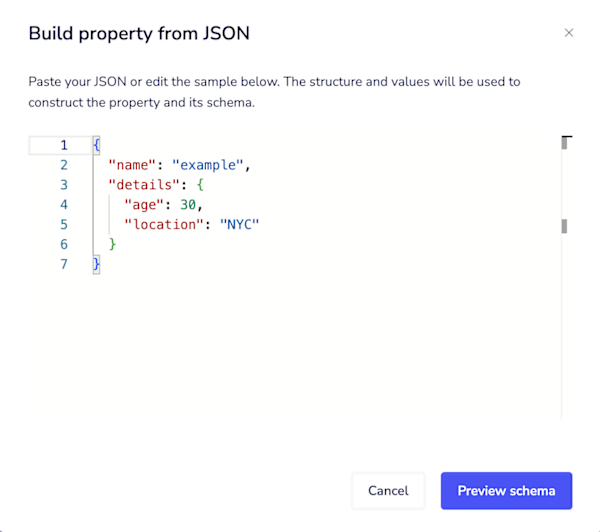

2. Paste your JSON or edit the sample in the modal.

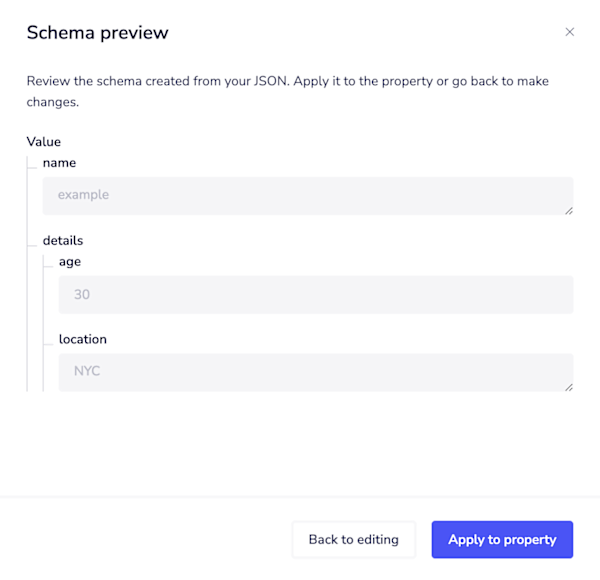

3. Click "Preview schema" to view the generated schema preview.
4. Click "Apply to property" to update the property, "Back to editing" to amend the JSON, or close the modal to discard changes.

Building schema for API Management and Callable workflows

The Build from JSON tool is also available for editing schema.

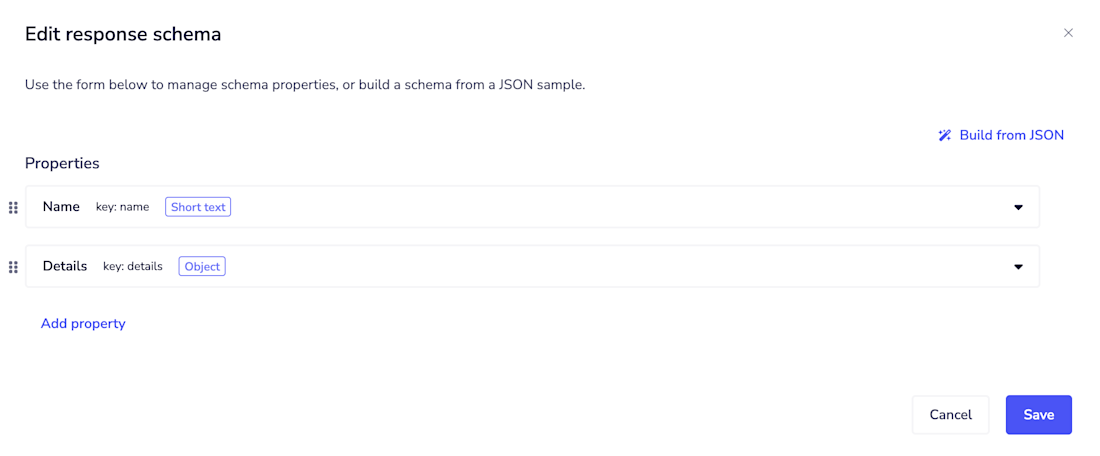

1. Locate the "Build from JSON" button in the schema editor modal.
2. Paste your JSON or edit the sample in the modal.
3. Click "Preview schema" to apply the generated schema in the modal.
4. Click "Save" to apply the changes, or "Cancel" or close the modal to discard changes.

Example

Input: { "name": "example", "details": \{ "age": 30, "location": "NYC" \} } Generated schema: Object with name (string) and details (object with age (number) and location (string)).
