AWS connectivity
AWS PrivateLink
This setup will allow specific Tray connectors to reach your services hosted on AWS. VPC Endpoints are what facilitate this type of connectivity - using a technology called PrivateLink.
AWS PrivateLink
This setup will allow specific Tray connectors to reach your services hosted on AWS.
VPC Endpoints are what facilitate this type of connectivity - using a technology called PrivateLink.
PrivateLink enables private connectivity between VPCs and supported AWS services hosted by other AWS accounts, as well as third-party services on AWS Marketplace.
Key points in using PrivateLink
- Traffic will stay within the AWS backbone and hence won’t be exposed to the public internet
- A VPC endpoint does not require an internet gateway, virtual private gateway, NAT device, VPN connection, or AWS Direct Connect connection or any other networking component hence we are looking at a simplified buildout topology and less costs.
- There is no option to natively encrypt this traffic, unless we use application-level tools such as TLS.
AWS PrivateLink required info
| Details | Notes |
|---|---|
| Customer Name | |
| Geographic location | The region in which your VPC is locatedWe will locate the Tray.io VPC in a region that is optimal in terms of latency when connecting |
| Tray OrgID | |
| Your AWS Account number | |
| VPC Endpoint Service fully qualified name | |
| VPC Endpoint Service ports |
AWS PrivateLink setup process
- We set up a separate Tray VPC network which does not overlap with your network and will not require you to reserve a large chunk of routes
- We deploy the relevant connectors inside that dedicated VPC
- We then create and host a VPC Endpoint
- This endpoint will request connectivity to your network which normally requires manual acceptance by your AWS admins ('auto-accept' is not a recommended security practice)
- Once accepted, our connectors will be able to reach the services hosted in your VPC
AWS PrivateLink technical considerations
- In this scenario:
- Tray will become a Service Consumer
- You become a Service Producer

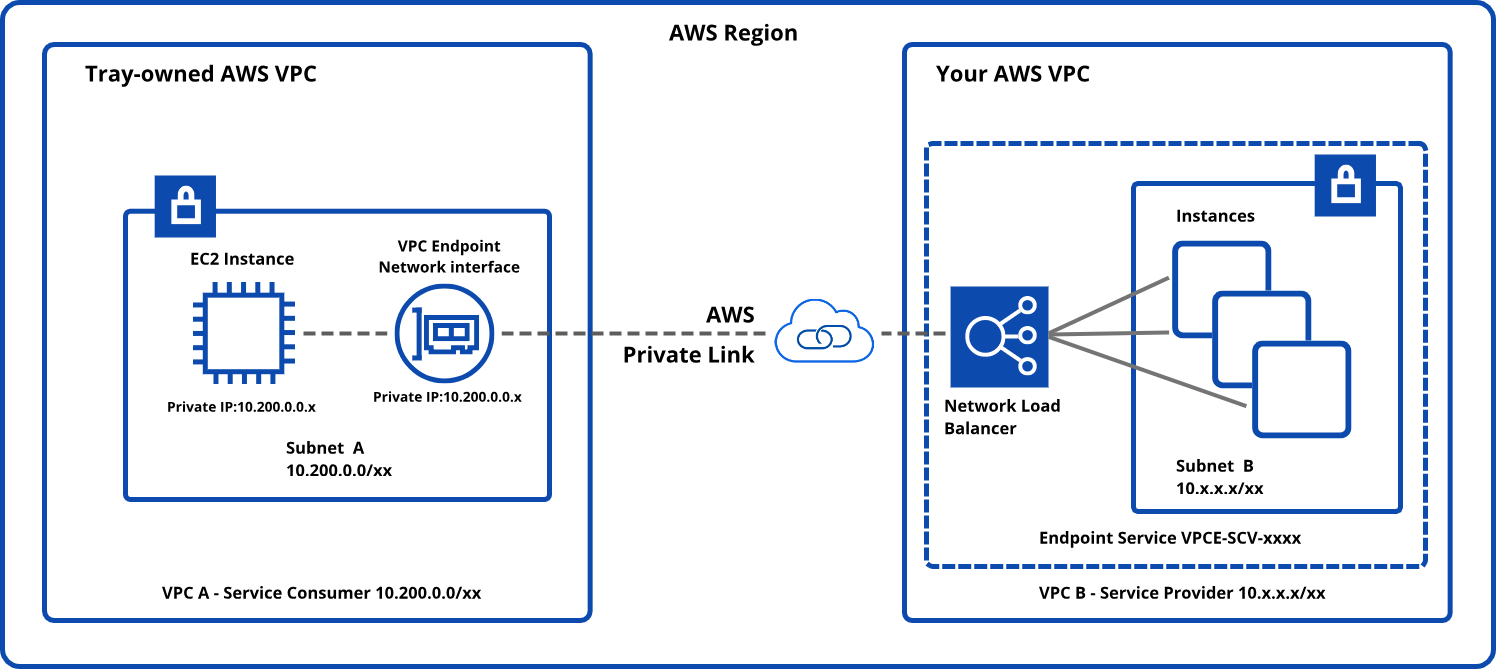

- As per the above diagram Tray hosts the VPC Endpoint and will point it towards a fully qualified service name that is provided to us by you.
- Your VPC endpoint service which supports integration with PrivateLink should be put behind a Network Load Balancer
